Ubiquiti EdgeRouter X SFP - 5x Gbit RJ45 port, 1x SFP, 5x PoE Out

2 143 CZK 1 771 CZK without VAT

Unknown availability

Code: NARUBT1013 PN: ER-X-SFP Warranty: 26 months
Výrobce: UBIQUITI
Ubiquiti EdgeRouter X SFP Gigabit Connectivity and Optical SFP for Backhaul The EdgeRouter X SFP features five independent Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching. The Gigabit... more

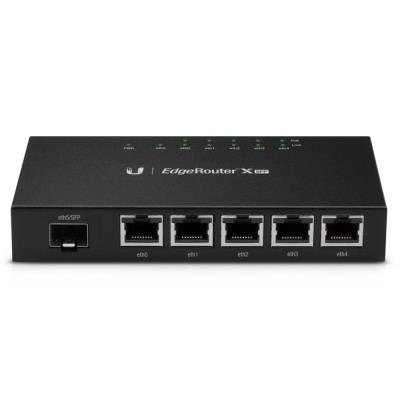

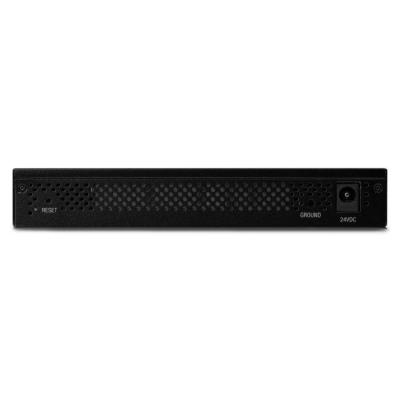

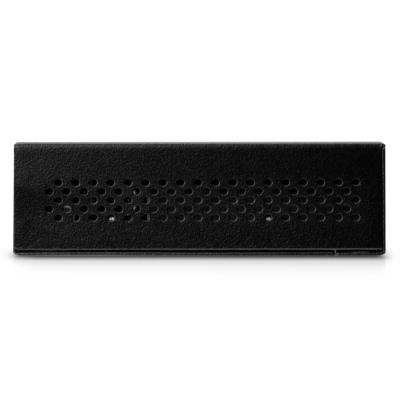

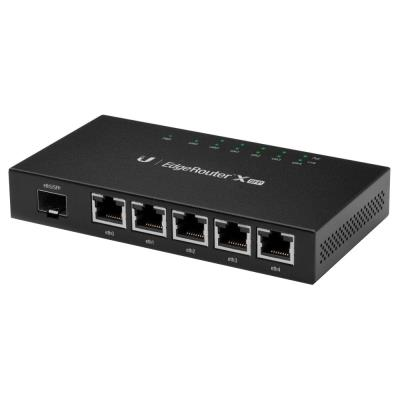

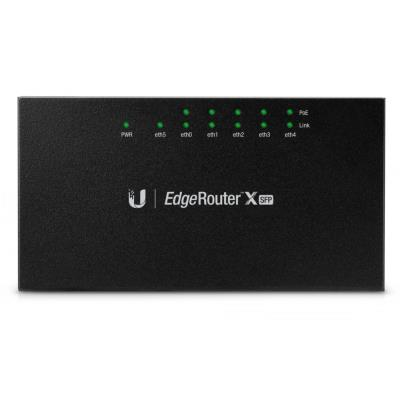

Ubiquiti EdgeRouter X SFP

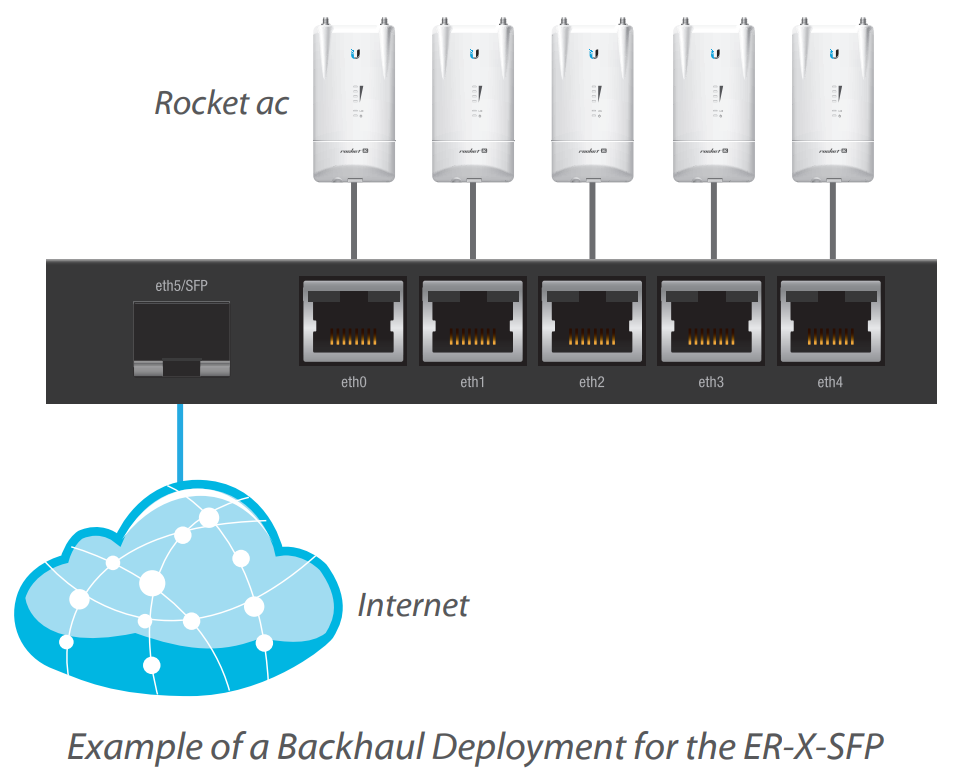

Gigabit Connectivity and Optical SFP for Backhaul
The EdgeRouter X SFP features five independent Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching. The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.

Versatile PoE Capability
The EdgeRouter X SFP supports 24V passive PoE to power up to five airMAX devices.

EdgeOS - Advanced UI
The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.

Powerful Features

  • VLAN 802.1q
  • Static routes and support of routing protocols: OSPF, RIP, and BGP
  • Bridging, bonding 802.3ad, PPPoE, GRE
  • VPN: IPsec, L2TP, OpenVPN, PPTP client and server
  • DHCP client and server
  • Firewall configuration (ACL-Based, Zone-Based) and NAT
  • Dynamic DNS, DNS forwarding, DHCP relay, VRRP, RADIUS Client
  • Network administration and monitoring tools
  • Administrator and operator accounts
  • Comprehensive IPv6 support
  • Quality of Service (QoS)

The package includes power adapter 24 V/2.5 A.

BASIC SPECIFICATIONS

Interface: 5× GbE PoE RJ-45, 1× SFP
Processor: MIPS1004Kc, 880 MHz, dual-core
RAM: 256 MB DDR3
Internal storage: 256 MB
Power: DC 24 V/2.5 A (adapter included) or 24 V passive PoE
Power voltage: DC 9–26 V
Power consumption: 5 W
PoE support: yes
Dimensions: 142 × 75 × 23 mm
Weight: 215 g

The EdgeMAX system is continuously improved, so we recommend always using the latest firmware.


Manual (installation guide):
dl.ui.com/qsg/ER-X-SFP/ER-X-SFP


Brand
Type specification :  Router
Manufacturer :  UBIQUITI
Technical specification
IPv6 support :  yes, full
PoE-in :  no
PoE-out :  passive
PoE-out (quantity) :  5
Outdoor use :  no
Indoor use :  yes
Max. operating temperature (°C) :  45
Min. operating temperature (°C) :  -10
NAND (MB) :  256
Processor
Processor :  MIPS 1004kc, 880 MHz
Memory
Memory size (MB) :  256
Display
Display :  no
Communication
3G support :  no
4G/LTE support :  no
5G support :  no
Network interfaces
Gigabit LAN :  yes
LAN :  yes
Router mode :  yes
Port Speed :  1 Gb/s
Wi-Fi :  no
Inputs and outputs
RJ-45 :  5
SFP :  1
Power supply
Input voltage (V) :  9 - 26 (DC)
Max. Voltage (jack) (V) :  26
Min. Voltage (jack) (V) :  9
PoE support :  yes
Power consumption - typical (W) :  5
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Support
SIM slot :  no
Security
Default password :  ubnt
Default IP :  192.168.1.1
Default username :  ubnt
Physical properties
Color :  black
Depth (mm) :  75
Weight (g) :  215
Weight (kg) :  0.215
Dimensions :  142 × 75 × 23 mm
Width (mm) :  142
Weight category :  Lightweight - up to 2 kg
Height (mm) :  23
Additional equipment and features
Certification mark :  CE, FCC, IC
