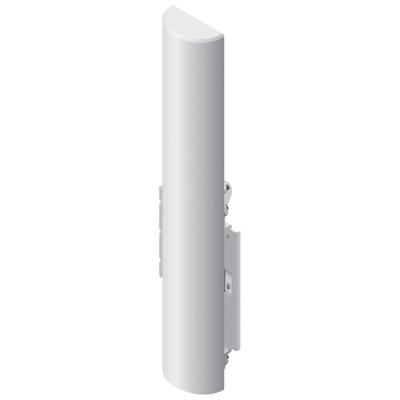

Ubiquiti Sector antenna AirMAX MIMO, 16dBi, 120°, 2x RSMA (5GHz)

2 060 CZK 1 702 CZK without VAT

It will be in stock 30.5.2025

Code: NATUBT0002 PN: AM-5G16-120 Warranty: 26 months
Výrobce: UBIQUITI
Ubiquiti AirMAX 16dBi Pair the airMAX Sector Antenna with a RocketM BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks. The innovative airMAX Sector Antennas feature carrier-class construction and 2x2... more
Ubiquiti AirMAX 16dBi

Pair the airMAX Sector Antenna with a RocketM BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

The innovative airMAX Sector Antennas feature carrier-class construction and 2x2, dual-polarity performance.

Specifications

Frequency Range: 5.10 - 5.85 GHz
Gain: 15.0 - 16.0 dBi

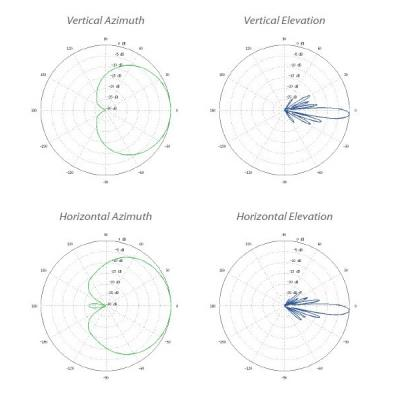

HPOL Beamwidth: 137° (6 dB)
VPOL Beamwidth: 118° (6 dB)
Dimensions: 367 x 63 x 41 mm
Weight: 1,1 kg

Brand
Type specification :  Wi-Fi antenna
Manufacturer :  UBIQUITI
Technical specification
Impedance (ohm) :  50
Polarization :  horizontal and vertical
PSV :  <1,5
Placement :  Pole
Angle of radiation - H. (°) :  137
Angle of radiation - V. (°) :  118
Gain (dBi) :  16
Network interfaces
Wi-Fi frequency :  5100 - 5850 MHz
Antenna
Integrated antenna :  yes
Detachable antenna :  no
Radiation :  sector
Inputs and outputs
Connector :  RSMA male
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Color :  white
Depth (mm) :  41
Weight (kg) :  1.1
Dimensions :  367 × 63 × 41 mm
Width (mm) :  63
Height (mm) :  367
Pedestal and mount
Wall Mount :  no
Pole mount :  yes
